Adjustable Woodworking Thicknesser Machine with 7m/min and 12m/min Feeding Speed H630
Product Details:
| Place of Origin: | China |
| Brand Name: | Easwon |
| Certification: | ISO |
| Model Number: | H630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiated |
| Packaging Details: | carton |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 500 set per month |
|
Detail Information |
|||
| Max. Planing Width: | 630mm | Max. Planing Thickness: | 200mm |
|---|---|---|---|
| Max. Planing Depth: | 5mm | Power: | 7.5kw/380V |
| Blade Number: | 4pcs | Feeding Speed: | 7, 12m/min |
| Condition: | New | Warranty: | 1 Year |
| Highlight: | 7m/min Woodworking Thicknesser Machine,12m/min Woodworking Thicknesser Machine,Adjustable Woodworking Thicknesser Machine |
||
Product Description

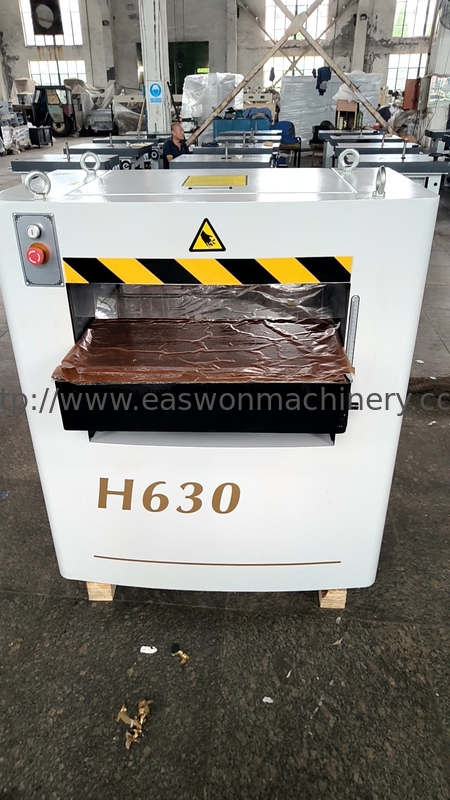

H630 woodworking single-side thicknesser
Solid cast iron & steel construction & large planing capacity make this planer a true heavyweight. It can be equipped 4pcs with 2 kinds of cutter head: straight cutter head and helical cutter head, which is high efficient. H630 single side thicknesser is driven by a 7.5kw powerful copper motor, and can process max. 200x630mm wood pieces. It has two feeding speed: 7m/min and 12m/min, and can be adjusted as per your requirement.
Single side thikcnesser features:
- Build-in mobile base
- Heavy duty cast iron construction
- Optional spiral cutter head and straight cutter head
- Two speed automatic board feeding
- Precision ground table
- Magnetic safety switch
- 150mm dust outlet
- 7.5kw powerful copper motor
H630 single side thicknesser specification:
| H630 | ||
| Max. planning width | mm | 630 |
| Max. planning thickness | mm | 200 |
| Feeding speed | m/min | 7; 12 |
| Max. planning depth | mm | 5 |
| Spindle speed | r/min | 5500 |
| Blade number | 4 | |
| Spindle diameter | mm | 105 |
| Motor | Kw/v | 7.5/380 |
| Dust outlet diameter | mm | 150 |
| Overall dimension | mm | 1053X849X1143 |
| Net weight | kg | 495 |
| Table motor lift | No |
H630 single side thicknesser details:
 |
|
| Cast steel helical feed roller feeding smoothly | Straight dust more thoroughly |
|
|
| Special feeding transmission more reliable | Ultra-high speed spindle is smooth for the machining piece |
|
|
|
|
Package and shipping:
The thickness planer is packed by plywood case, which is suitable for FCL and LCL shipping.
|
|
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
